CT5702A Datasheet

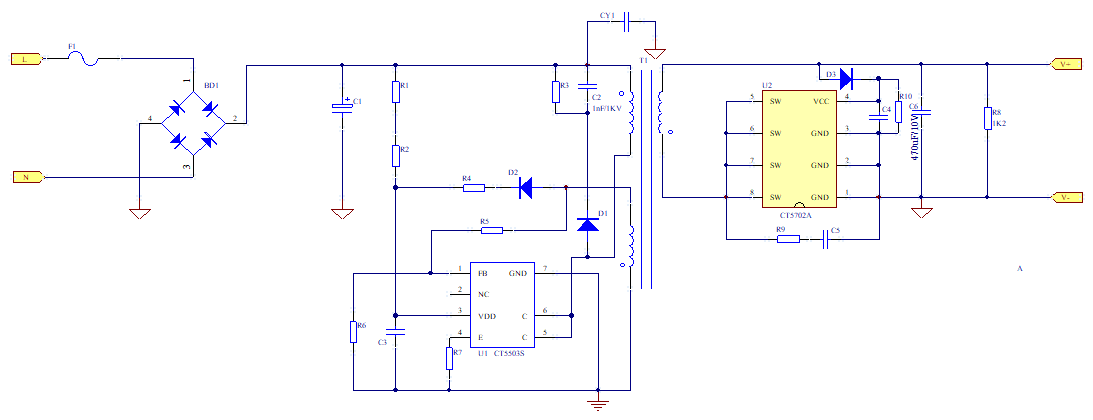

The CT5702A is a synchronous rectifier for Flyback converters. It integrates a 40V power MOSFET, that can replace Schottky diode for high efficiency

The CT5702A have multi-protection functions which largely enhance the safety and reliability of the system.

The CT5702A is available in SOP-8 package.

Features

  • Integrated 13mΩ 40V Trench MOSFET
  • Supports DCM and Quasi-Resonant Flyback
  • Precise Synchronous Rectifier VDS detection
  • MOSFET Fast Shutdown Ability within 20nS
  • Supports Low-side Rectification
  • VDD UVLO Protection
