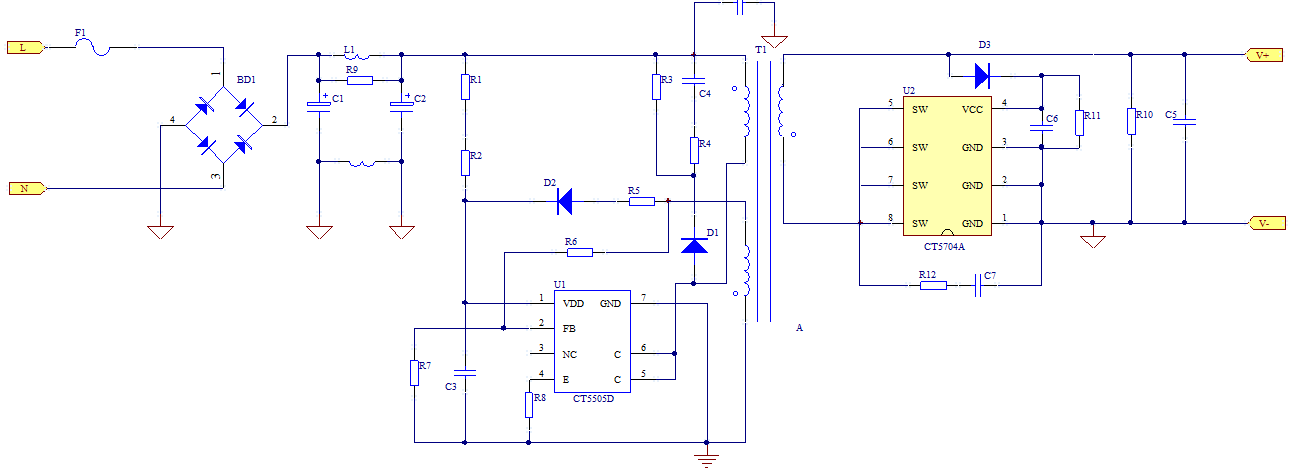

The CT5704A is a synchronous rectifier for Flyback converters. It integrates a 40V power MOSFET, that can
replace Schottky diode for high efficiency.
The CT5704A have multi-protection functions which largely enhance the safety and reliability of the system.
The CT5704A is available in SOP-8 package.
- Integrated 5.5mΩ 40V Trench MOSFET
- Supports DCM and Quasi-Resonant Flyback
- Precise Synchronous Rectifier VDS detection
- MOSFET Fast Shutdown Ability within 20nS
- Supports Low-side Rectification
- VDD UVLO Protection
